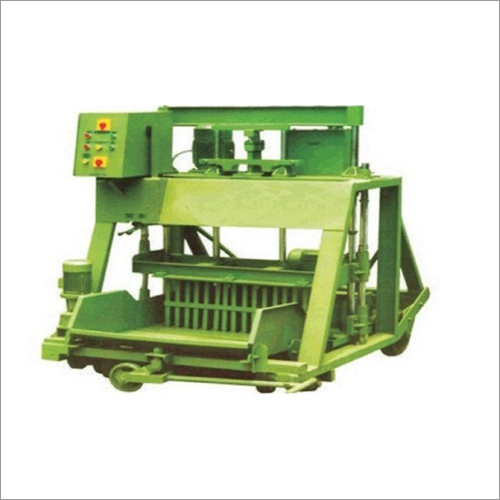

Hydraulic Concrete Block Making Machine

Hydraulic Concrete Block Making Machine
Hydraulic Concrete Block Making Machine
Send Inquiry
Product Code : 01
Product Description

Owing to our expertise, we bring forth an exclusive range of Hydraulic Concrete Block Making Machine ( Egg Laying Type). These machines are widely used in various industries and heavy construction sites which are obtainable in different sizes and dimensions at affordable prices. Easy to operate, this machine consists of powerful motor, belt conveyor, mixer and hopper. Developed by adroit professionals, this Hydraulic Concrete Block Making Machine ( Egg Laying Type) can be obtained in customized specifications.

Model 1060 Hydraulic Machine

Specification :

  • Total Power - 8.5 HP 3 Phase Motor
  • Hydraulic Pump Motor - 5 HP 3 Phase Motor
  • Vibrator Motor - 3 HP 3 Phase Motor
  • Travel Motor - 0.5 HP 1440 RPM 3 Phase
  • Operating Pressure - 140 Kg/cm2
  • Vibrations - 6000 Hz Amplitude Adjustable
  • Moulding Area - 1060 x 600 mm

1. Triple Vibrator Hydraulic Operated Concrete Block Making Machine with 8.5 HP Motor & Electrical Panel

2. Cavity Mould & Ram

  • 400x100x200mm - 16"x4"x8" (10Nos)
  • 400x150x200mm - 16"x6"x8" ( 6Nos)
  • 400x200x200mm - 16"x8"x8" ( 5Nos)

3.Solid Mould & Ram

  • 400x100x200mm - 16"x4"x8" (10Nos)
  • 400x150x200mm - 16"x6"x8" ( 6Nos)
  • 400x200x200mm - 16"x8"x8" ( 5Nos)

Production Capacity / Hour :

  • 400x200x100-4" Block / Stroke-10 Blocks - 500-600 / Hour
  • 400x200x150-6" Block / Stroke -06 Blocks -300-360 / Hour
  • 400x200x200-8' Block / Stroke - 05 Blocks -250-300 / Hour
